Ford 6R80 Electrical Plate (Lead Frame) Service Kit

The lead frame (also called the electrical plate) carries the 6R80's internal wiring and speed sensors. It's a known failure point in Ford Ranger, Mazda BT-50, Everest and Territory transmissions. A faulty lead frame can cause harsh or erratic shifts, limp mode, and speed sensor fault codes. Common examples are P0715, P0720 and P0717.

This kit has the parts you need to replace the lead frame and reseal the transmission while you're in there.

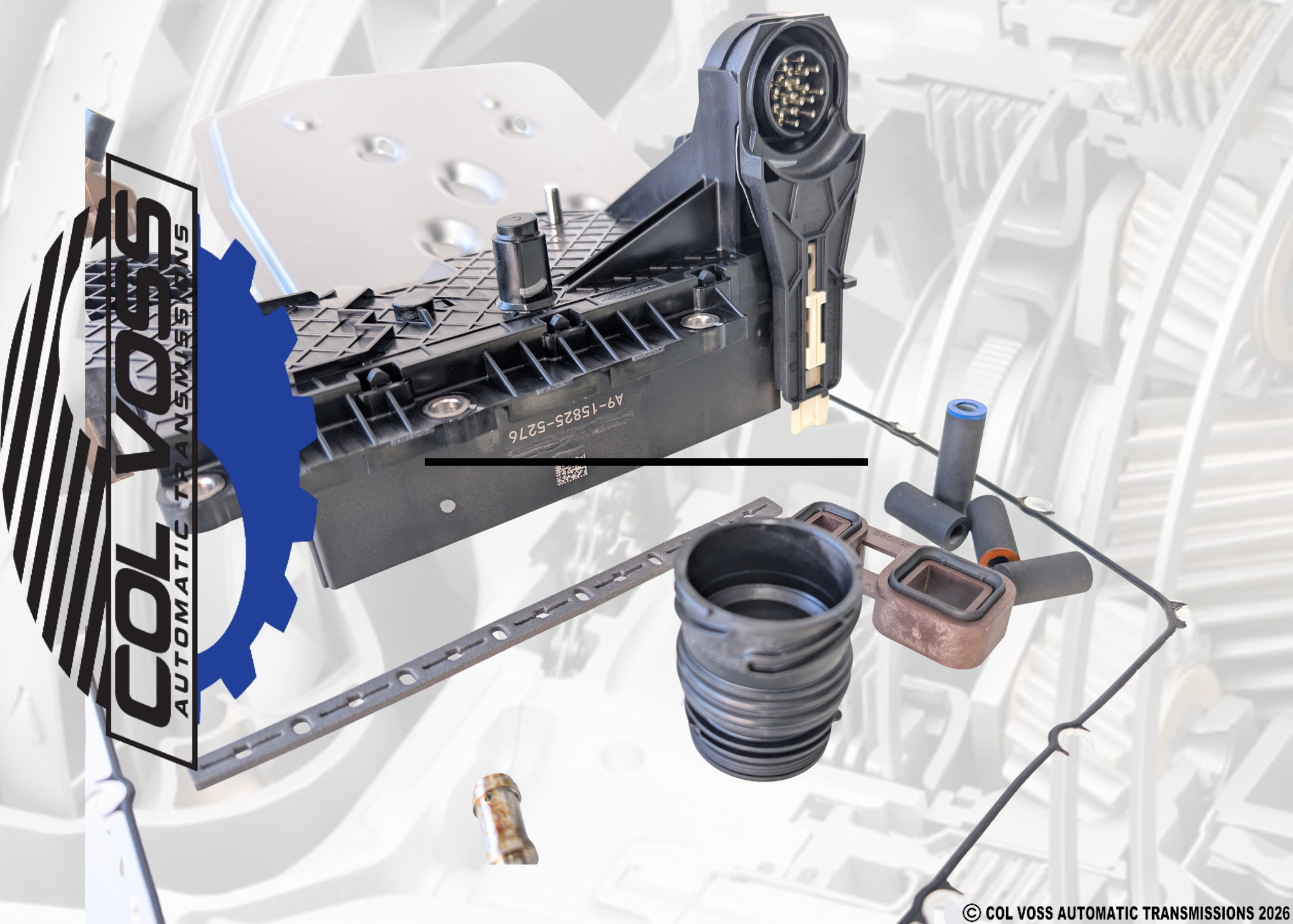

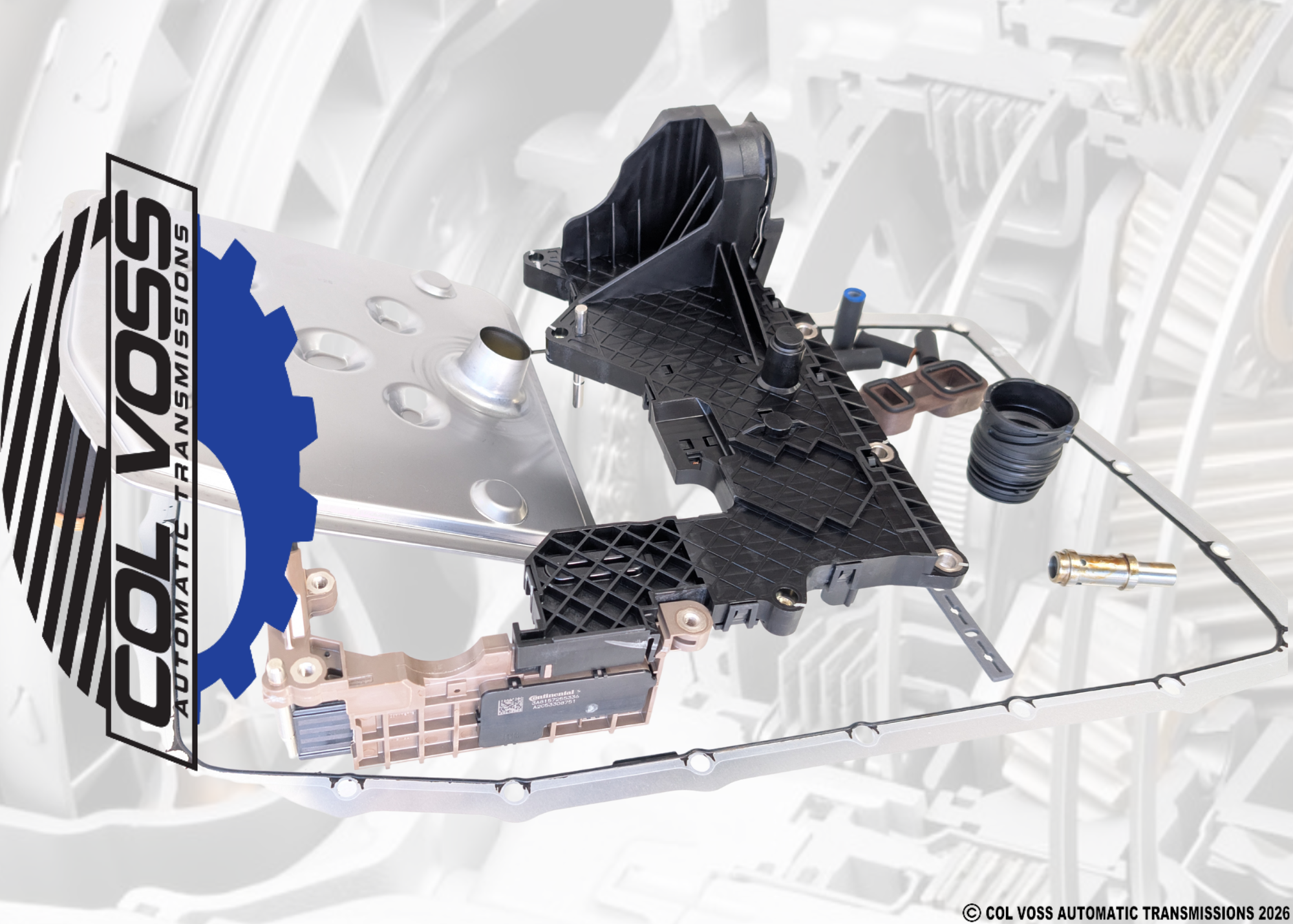

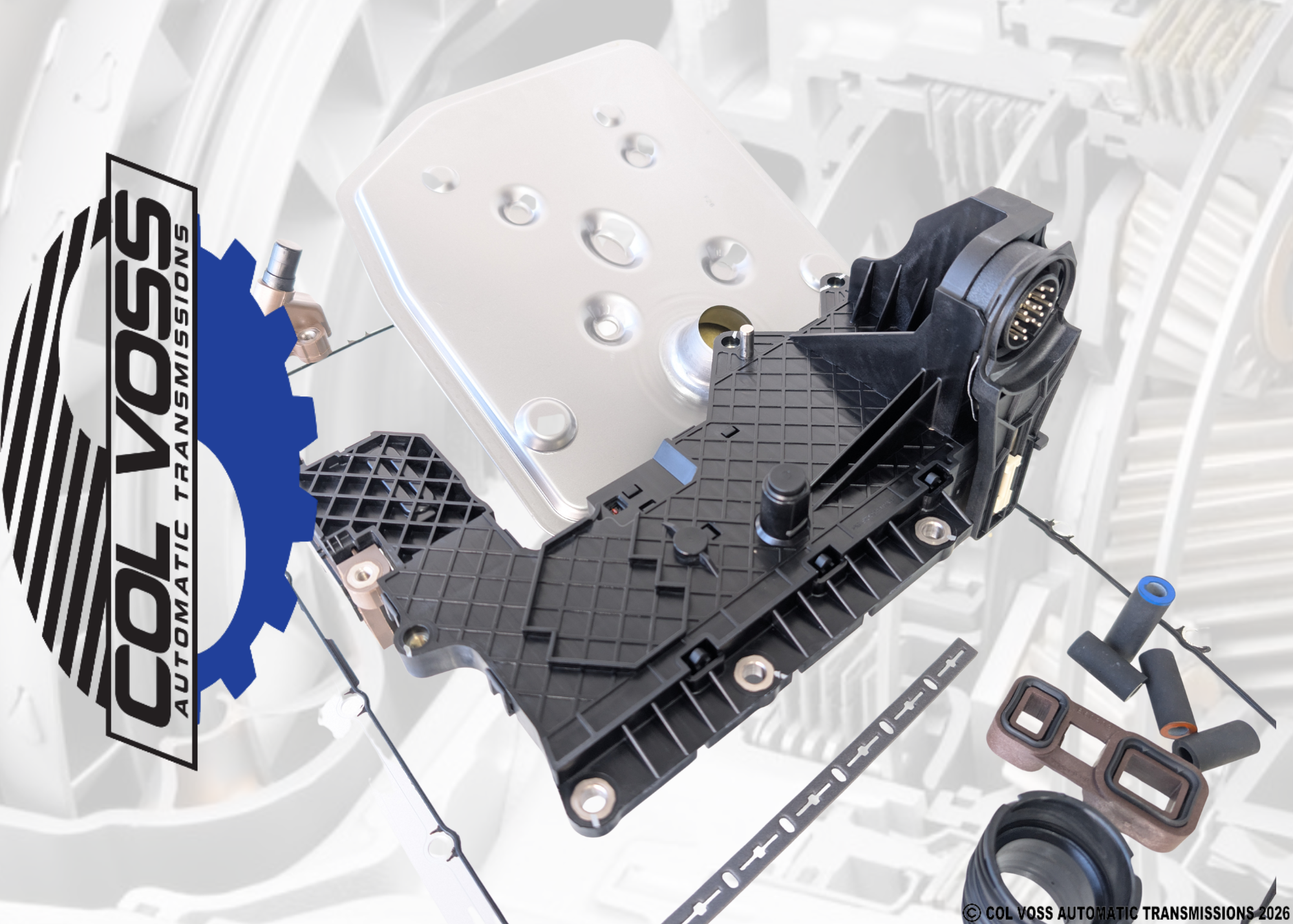

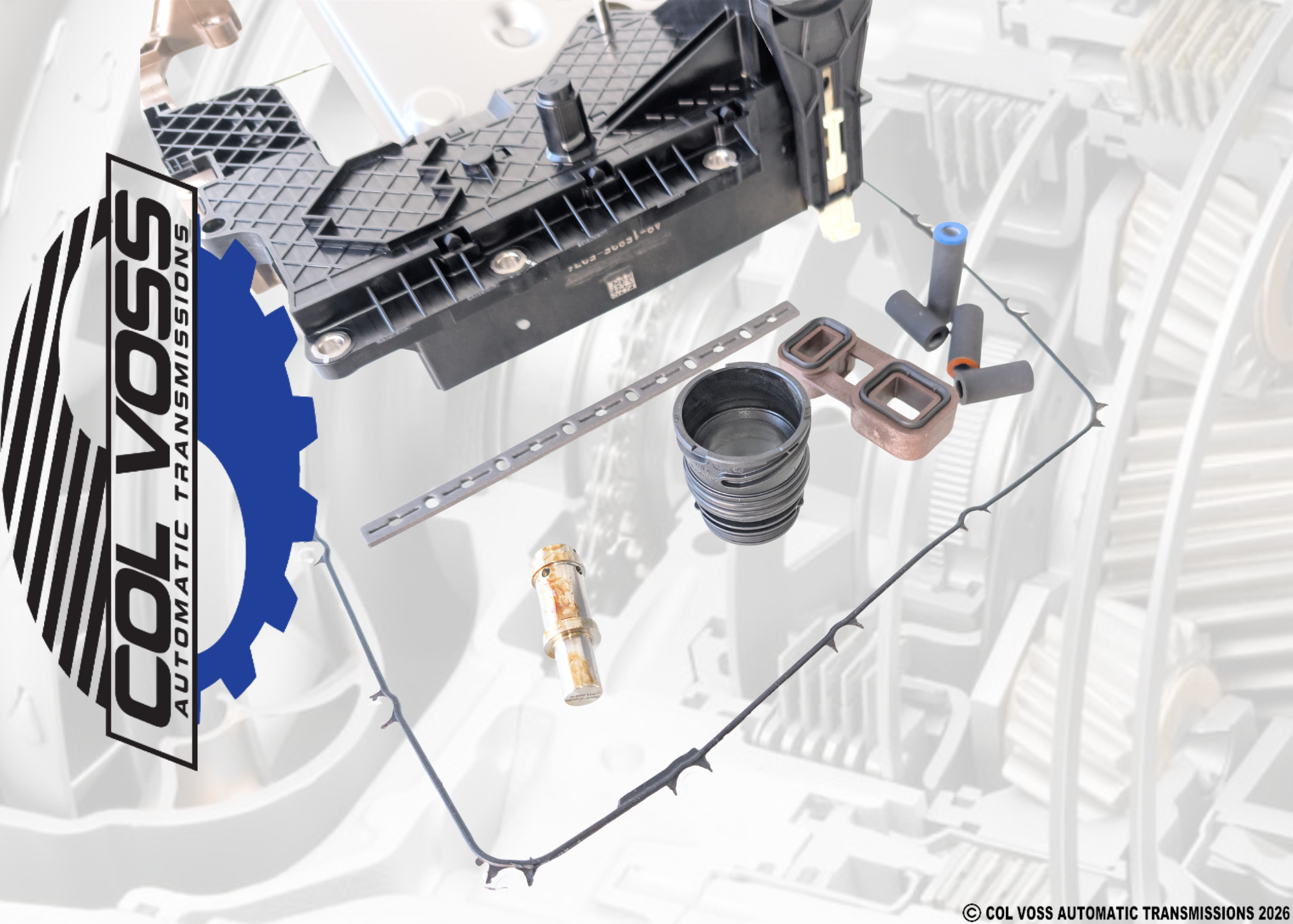

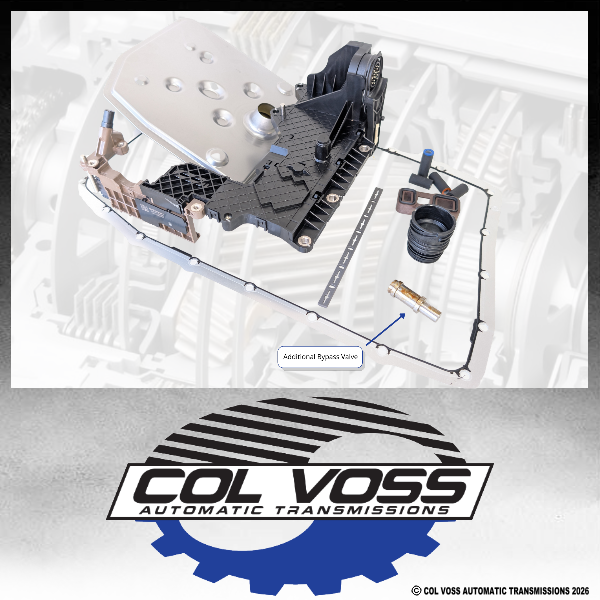

Kit includes

• Genuine Ford electrical plate (lead frame)

• Transmission filter with 26 mm pickup (3 Leg fits PX1 & PX2, Ranger)

• Sump pan gasket

• Case connector

• Valve-body-to-case sealing kit

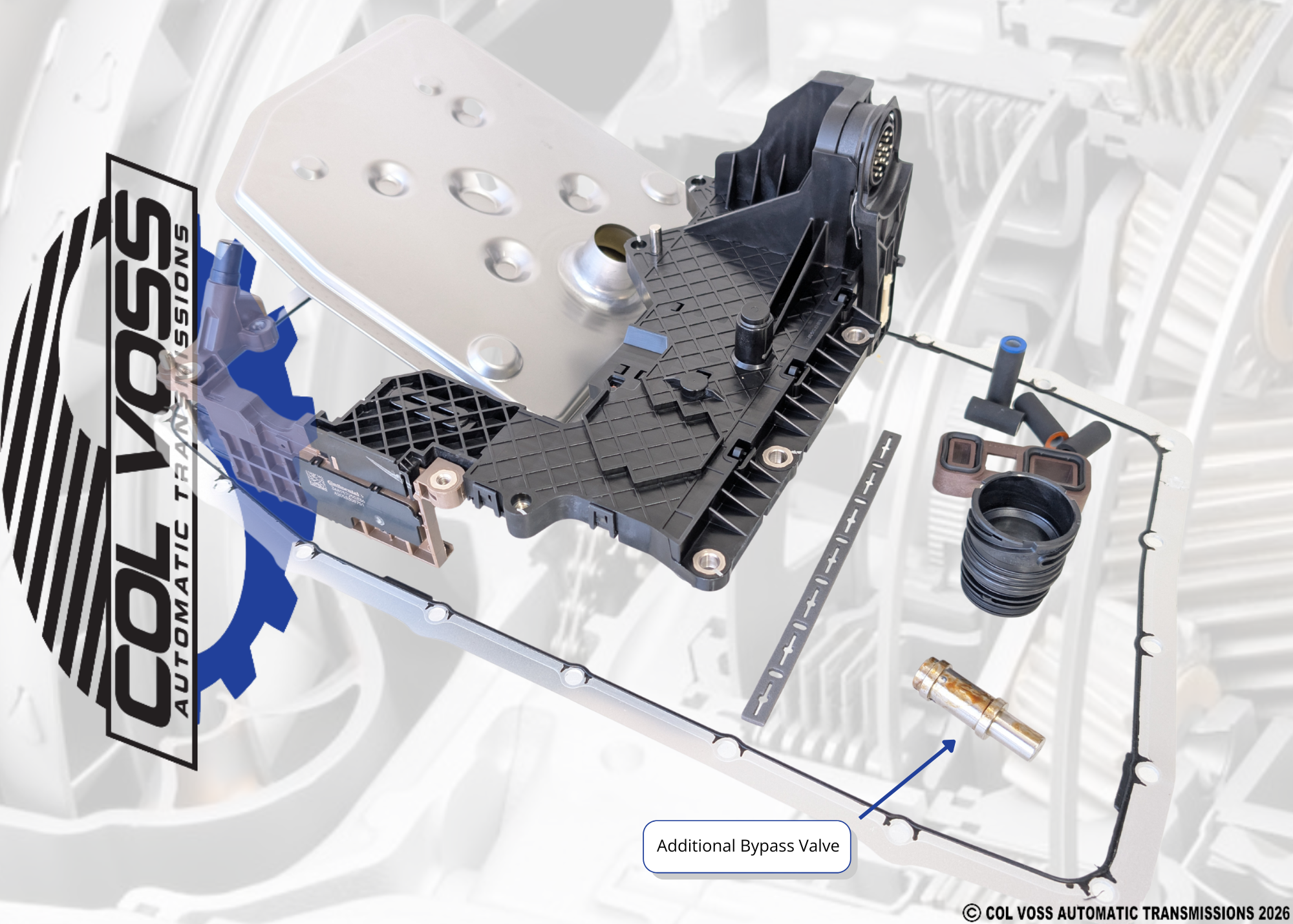

Optional add-on: Thermal Bypass Valve

• Patented design (US Patent 9,249,875 B1)

• Keeps fluid flowing through the cooler full-time, which lowers the average fluid temperature

• Built-in high-pressure safety bypass into the lube circuit

• Lets you check the fluid level straight away without a warm-up cycle

• Drop-in replacement that fits in-car while the valve body is out

Fitment
Suits Ford 6R80 6-speed automatic transmissions from 2006 on, including:

• Ford Ranger PX / PX MkII / PX MkIII

• Mazda BT-50 (UP/UR, 6-speed auto)

• Ford Everest UA (6-speed auto)

• Ford Territory SZ / SZ MkII

Not for 10-speed (10R80) transmissions, which are fitted to most Next-Gen Ranger, Everest and 2018-on Mustang models.

Fluid NOT included. The 6R80 uses Ford Mercon LV. Ask us about fluid quantity for your model, or add fluid to your order.

Codes
P0722 - Output Shaft Speed Sensor Circuit No Signal
P0720 - Output Shaft Speed Sensor Circuit
P0706 - Transmission range sensor A circuit range/performanc
P0707 - Transmission range sensor A circuit low
P1702 - Transmission range sensor circuit intermittent
P1921 - Transmission range signal.

Fitting
We recommend having an experienced transmission technician fit this kit. We can fit it at our Brookvale workshop on Sydney's Northern Beaches. Call 02 9907 4486 to book.

Shipping
We ship Australia-wide from Brookvale NSW every Tuesday & Thursday via Australia Post Express Post Service

Warranty
12 months / 20,000kms Parts Only Warranty. Parts-only purchases don't include labour cover or the Col Voss workshop warranty.
