Automatic Transmission External Oil Cooler Kit to suit Ford BF XR8 8cyl Engine Falcons (Our recommended kit for BF 8 cylinder Engines).

• Extra Large PWR Plate Fin Transmission Cooler (255 x 280 x 19) with 10mm Push On Hose Barb's (Cooler provided in kit will be Raw Aluminium colour).

• This kit is a complete bypass of the factory heat exchanger & the supplied fittings are designed to connect directly onto the factory steel pipes with out cutting.

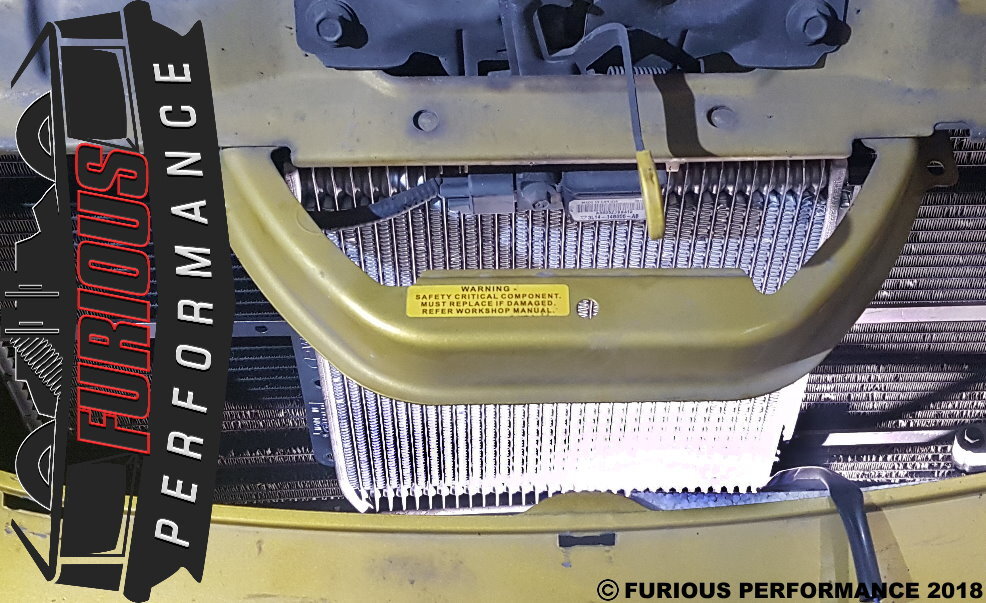

• The cooler mounts in front of the A/C condenser and behind the front bumper bar. Only the front grill will need to be removed to fit the cooler and brackets.

• This kit also includes fitting instructions written by Furious Performance with detailed images.

Part No: TCK-F388BF.

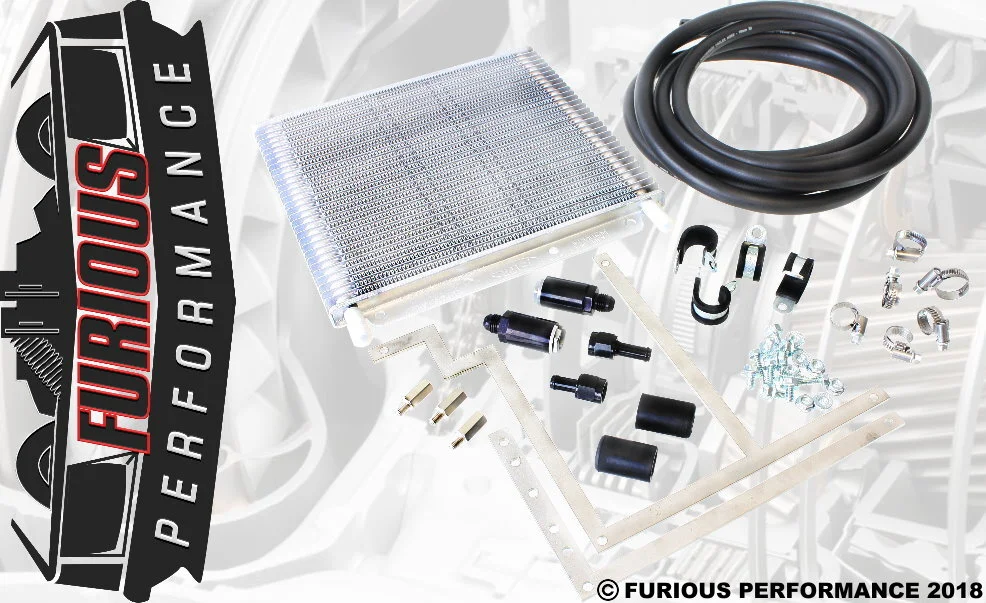

KIT CONTENTS

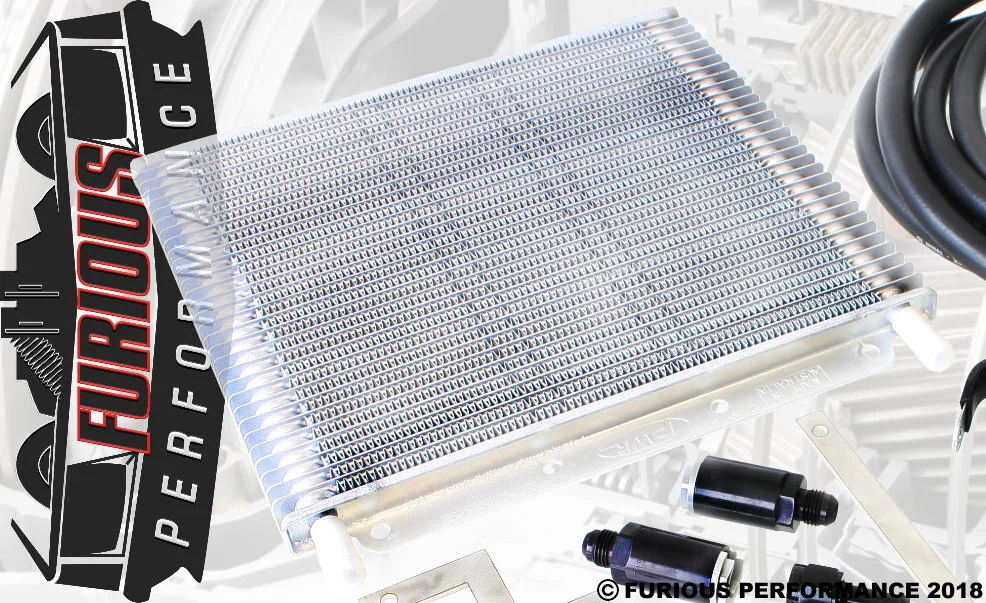

• [QTY: 1] Part No: TC-25510 - PWR External Plate & Fin Transmission Cooler (280x255x19) 10mm Barbs (PWO0528).

• [QTY: 3] Part No: 444-06-ATF - Goss 10mm ID Automatic Transmission Fluid Hose (4 Meters).

• [QTY: 2] Part No: 715-06-08-BLK - Speedflow hard line adapter fittings.

• [QTY: 2] Part No: 411-06-BLK - Speedflow -6AN female to 3/8" barb male hose adapter fittings.

• [QTY: 2] Part No: BC16 - 13mm Blanking Caps.

• [QTY: 1] Part No: TCK-F0BABK - Ford BA/BF Falcon & SX/SY Territory Bracket Kit.

• [QTY: 1] Part No: TCK-F038FK - Universal Bolt, Nut & Clamp fitting kit.

• [QTY: 1] Double sided A4 instructions with detailed images.

PLEASE READ BEFORE YOU BUY

This automatic transmission oil cooler kit will only fit Fords BF 8 cylinder Falcons using an Internal Heat Exchanger cooling unit inside the left side radiator tank. This kit will connect to the factory steel lines behind the radiator fans. This kit will only fit the ZF 6 speed automatic transmission vehicles, however we do have other kits available for the for the 6 cylinder vehicles.

FORD BF FALCON COOLER KITS AVAILABLE FROM FURIOUS PERFORMANCE:

• TCK-F25510: Will fit 6 Cylinder Non Turbo Ford BF Falcon 4 Speed Transmission using radiator to cool transmission fluid.

• TCK-F25513: Will fit 6 Cylinder Non Turbo Ford BF Falcon 4 Speed & 6 speed Transmission using external heat exchanger cool transmission fluid (Retains factory plastic cooler lines).

• TCK-F384BF: Will fit 6 Cylinder Non Turbo Ford BF Falcon 4 Speed Transmission using external heat exchanger cool transmission fluid (Recommended for 4 speed Vehicles).

• TCK-F386BF: Will fit 6 Cylinder Non Turbo Ford BF Falcon 6 speed Transmission using external heat exchanger cool transmission fluid. This kit connects directly to the ZF transmission housing using billet aluminium adapters. (Recommended for ZF 6 speed Vehicles).

• TCK-FURXR6: Will fit 6 Cylinder TURBO Ford BF Falcon 6 speed Transmission running Speedflow braided lines from the transmission straight to the cooler mounted under drivers side head light with a standalone fan mounted to the cooler.

OUR OPINION ON THIS ITEM

All Automatic Transmissions are fitted with an internal heat exchange in the radiator tank or an external heat exchanger mounted to the vehicle with coolant hoses attached. This is to help keep the transmission at operating temperature however the transmission can become over heated due to Hi-Performance, Towing or Loading. Fitting a cooler in series with the radiator can help keep the transmission cooler in extreme conditions but still allow the radiator to help keep operating temp. Bypassing the radiator and just using the cooler can also help when the transmission is under lots of load all the time. Bypassing can also take away the risk of the radiator core or exchanger cracking and filling your transmission with water which will result in a Rebuild of the transmission.
