Automatic Transmission External Oil Cooler Kit to suit Ford BF 6 Speed 6cyl Non Turbo Engine Falcons.

• Extra Large PWR Plate Fin Transmission Cooler (255 x 280 x 19) with 10mm Push On Hose Barb's  (Cooler provided in kit will be Raw Aluminium colour).

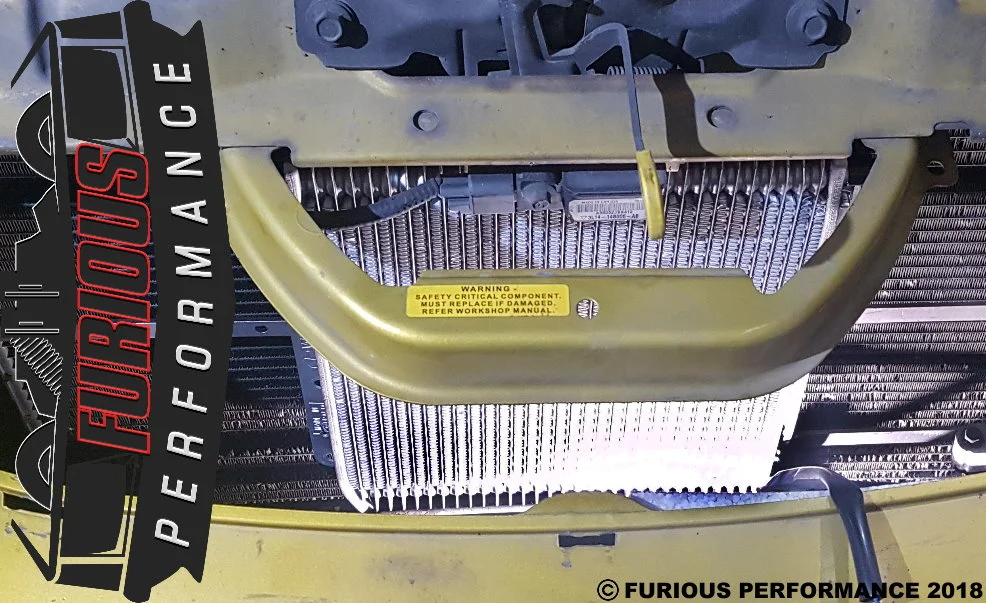

• This kit is a complete Bypass of the factory heat exchanger & the supplied fittings are designed to connect directly into the transmission housing using the factory bracket without cutting. The cooler mounts in front of the A/C condenser and behind the front bumper bar. Only the front grill will need to be removed to fit the cooler and brackets.

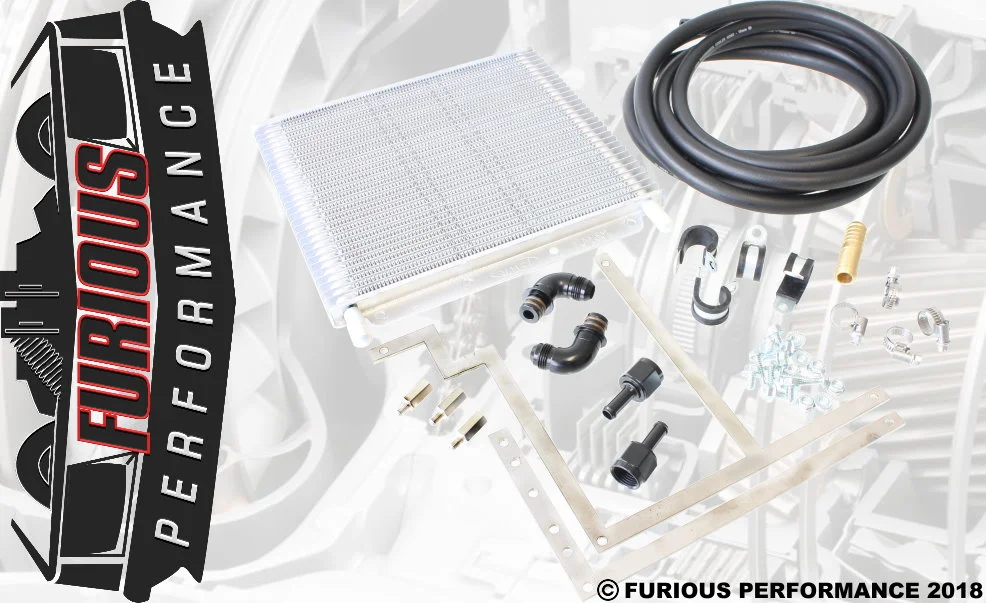

• This kit includes 1 x PWR Oil Cooler, 1 x 4m Length of 10mm ID hose, 2 x 90deg Billet Aluminium ZF adapter fittings, 2 x 3/8" Barb Adapters, 1 x Coolant Bypass Adapter, 4 x Hose Clamps, Stainless Steel Mounting Brackets, Bolts, Nuts & Instructions.

• Fitting instructions written by Furious Performance with detailed images.

• Please Note: The Brackets supplied are to suit all Ford BF Falcons.

Part No: TCK-F386BF.

 KIT CONTENTS

[QTY: 1] Part No: TC-25510 - PWR External Plate & Fin Transmission Cooler (280x255x19) 10mm Barbs (PWO0528).

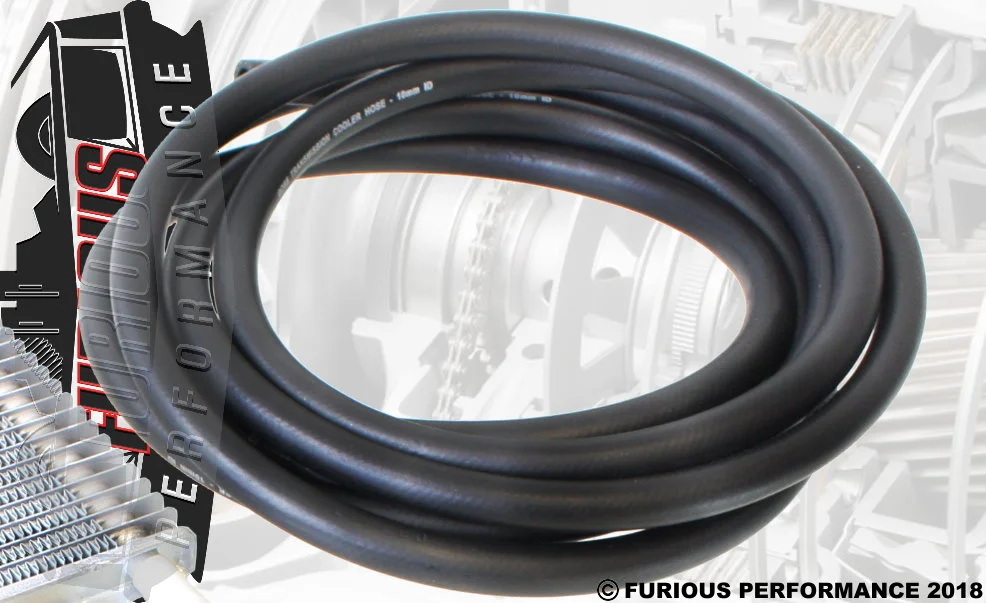

[QTY: 4] Part No: 444-06-ATF - Goss 10mm ID Automatic Transmission Fluid Hose (4 Meters).

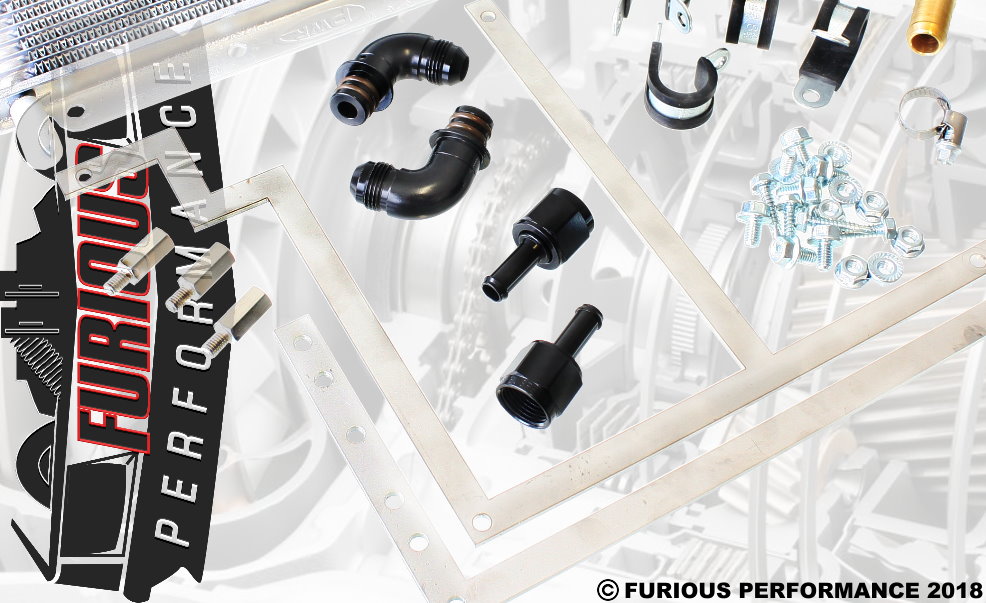

[QTY: 2] Part No: 922-08-ZF-BLK -  Speedflow 90deg Billet Aluminium ZF case adapter fittings.
[QTY: 2] Part No: 411-08-06-BLK - Speedflow -8AN female to 3/8" barb male hose adapter fittings.
[QTY: 1] Part No: TCK-058BYP - Brass male to male coolant hose bypass adapter fitting.
[QTY: 1] Part No: TCK-F0BFBK - Ford BA/BF Falcon & SX/SY Territory Bracket Kit.

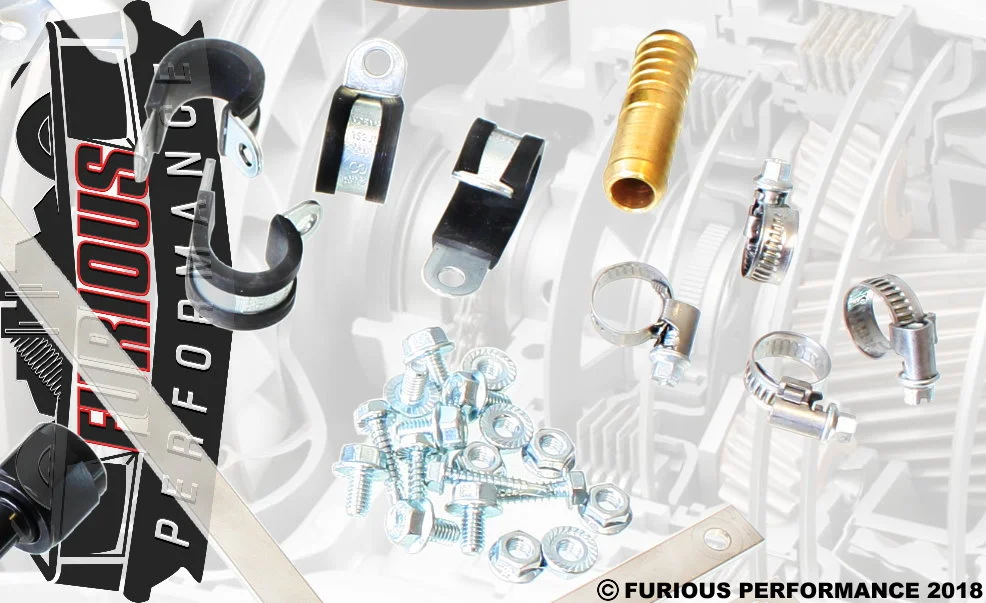

[QTY: 1] Part No: TCK-F038FK - Universal Bolt, Nut & Clamp fitting kit.

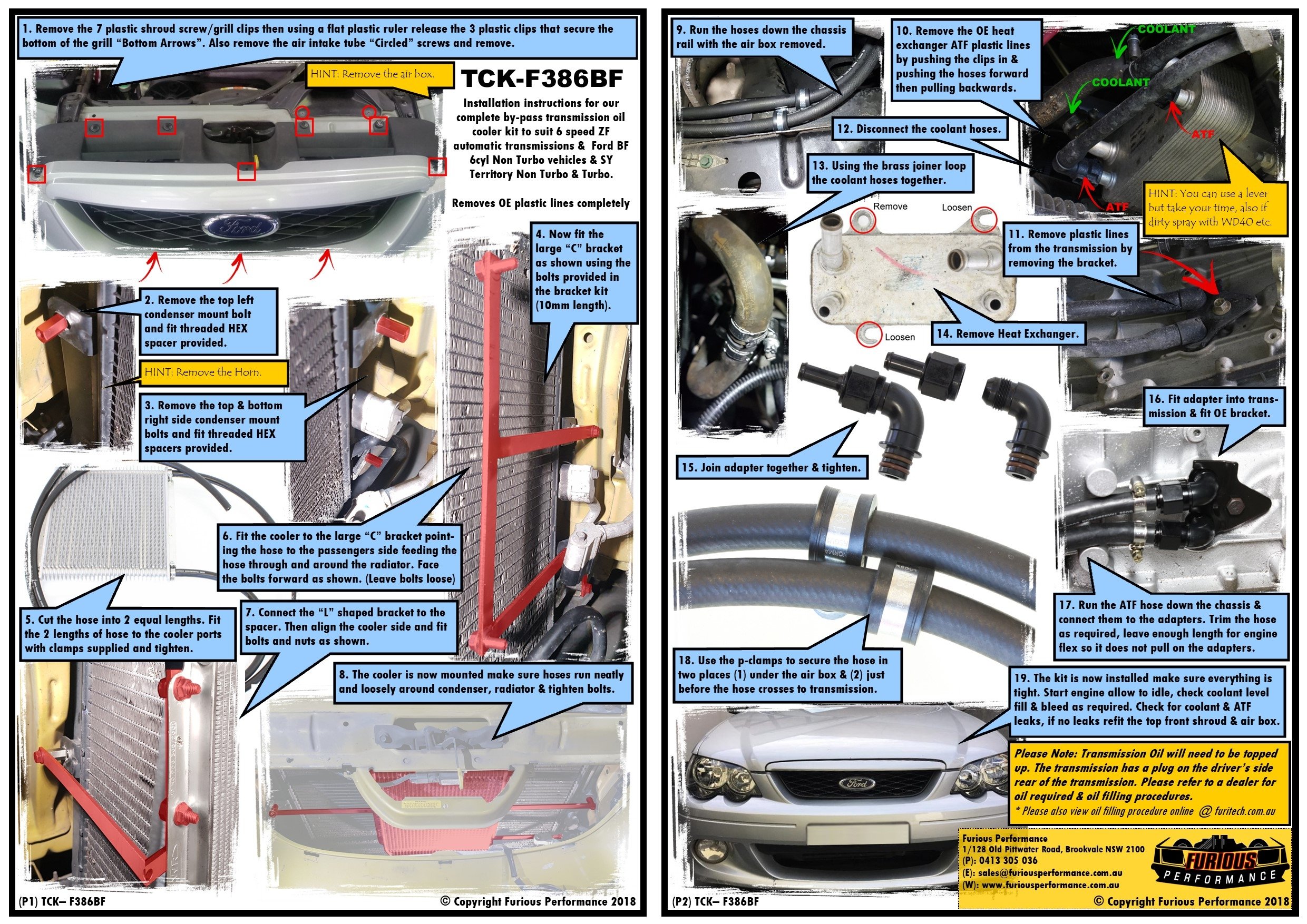

[QTY: 1] Double sided A4 instructions with detailed images.

OUR OPINION ON THIS ITEM

• All Automatic Transmissions are fitted with an internal heat exchange in the radiator tank or an external heat exchanger mounted to the vehicle with coolant hoses attached. This is to help keep the transmission at operating temperature however the transmission can become over heated due to Hi-Performance, Towing or Loading. Fitting a cooler in series with the radiator can help keep the transmission cooler in extreme conditions but still allow the radiator to help keep operating temp. Bypassing the radiator and just using the cooler can also help when the transmission is under lots of load all the time. Bypassing can also take away the risk of the radiator core or exchanger cracking and filling your transmission with water which will result in a Rebuild of the transmission.

PLEASE READ BEFORE YOU BUY

This automatic transmission oil cooler kit will only fit Fords Falcons using an External Heat Exchanger cooling unit under the inlet manifold. This kit connects directly to the ZF transmission housing using billet aluminium adpaters. (Recommended Kit for ZF6HP26 6 speed Vehicles).
