Ford FG Falcon 4 speed Automatic Transmission Oil Cooler Coolant Bypass Kit TCK-F384FG


Ford FG Falcon 4 speed Automatic Transmission Oil Cooler Coolant Bypass Kit TCK-F384FG

340.00

Automatic Transmission Oil Cooler Kit to suit 6 Cylinder Non Turbo Ford FG Falcon with 4 Speed Transmission using external heat exchanger to cool transmission fluid.

KIT INFORMATION

  • Automatic Transmission External Oil Cooler Kit to suit Ford FG 6cyl Non Turbo Engine Falcons.

  • Extra Large PWR Plate Fin Transmission Cooler (255 x 280 x 19) with 10mm Push On Hose Barb's (Cooler provided in kit will be Raw Aluminium colour).

  • This kit is a complete Bypass of the factory heat exchanger & the supplied fittings are designed to connect directly into transmission housing.

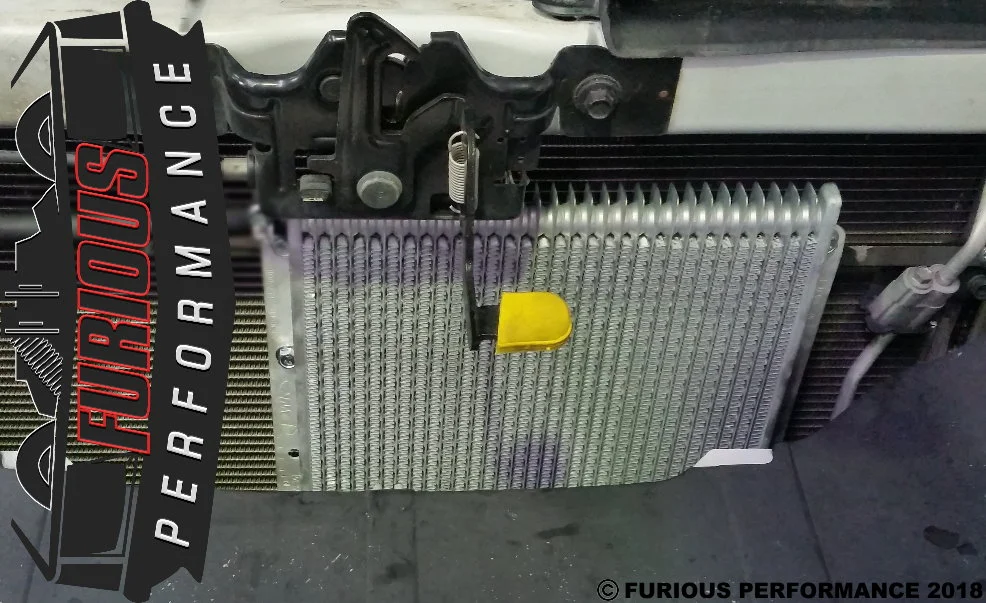

  • The cooler mounts in front of the A/C condenser and behind the front bumper bar. Only the front grill will need to be removed to fit the cooler and brackets.

  • Fitting instructions written by Furious Performance with detailed images.

  • Please Note: The Brackets supplied are to suit all Ford FG Falcons.

  • Part No: TCK-F384FG.

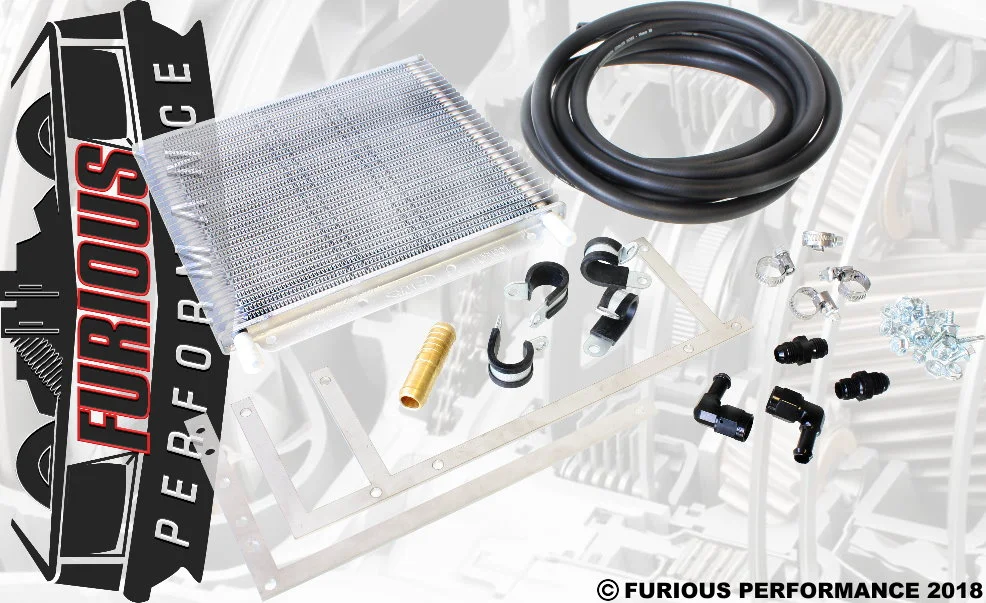

KIT CONTENTS

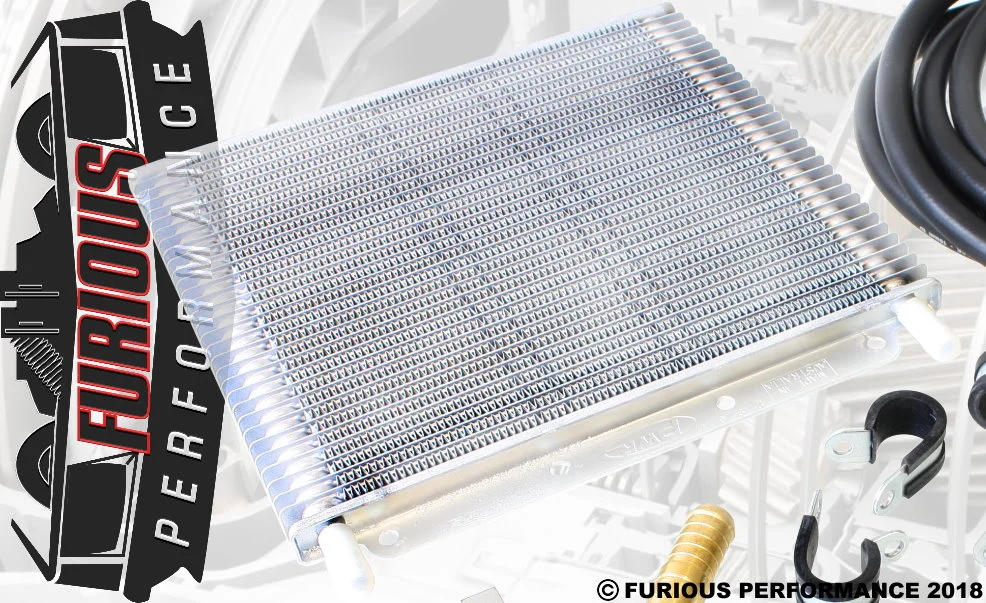

  • [QTY: 1] Part No: TC-25510 - PWR External Plate & Fin Transmission Cooler (280x255x19) 10mm Barbs (PWO0528).

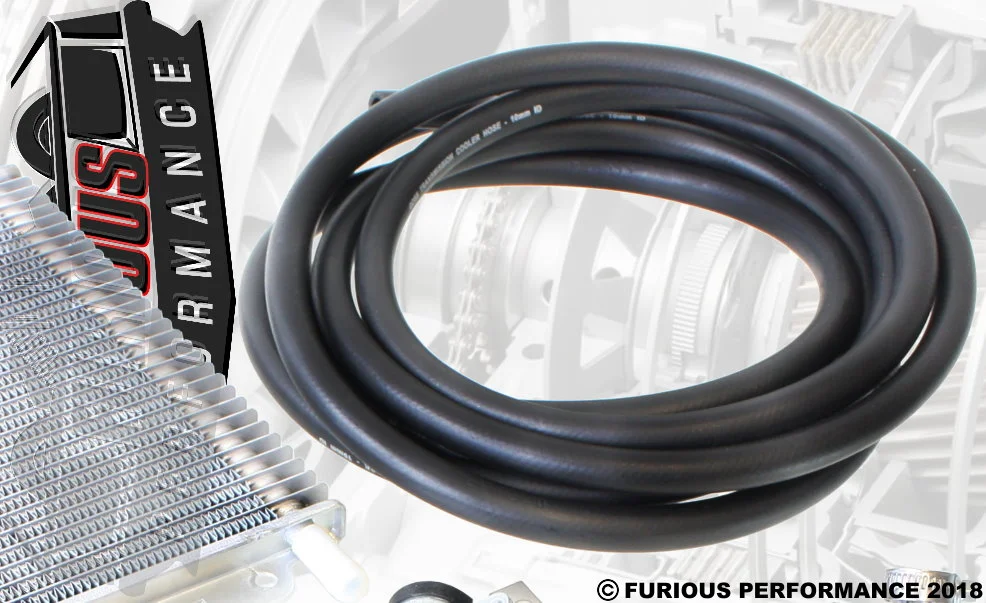

  • [QTY: 4] Part No: 444-06-ATF - Goss 10mm ID Automatic Transmission Fluid Hose (4 Meters).

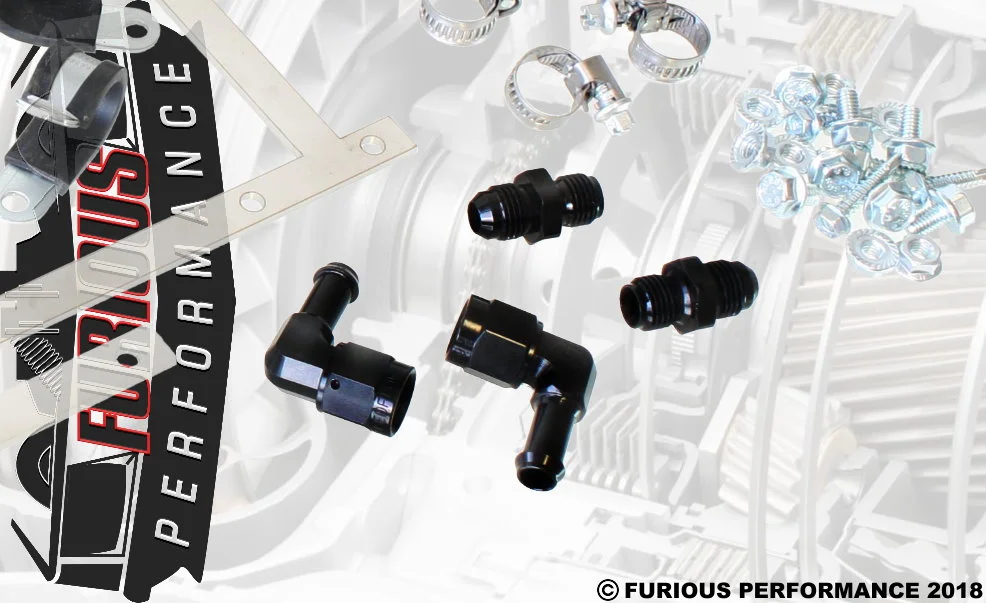

  • [QTY: 2] Part No: 816-06-BLK -  Speedflow NPT Male Thread Aluminium pipe adapter fittings.

  • [QTY: 2] Part No: 413-06-BLK - Speedflow -6AN female to 3/8" barb male 90 degree hose adapter fittings.

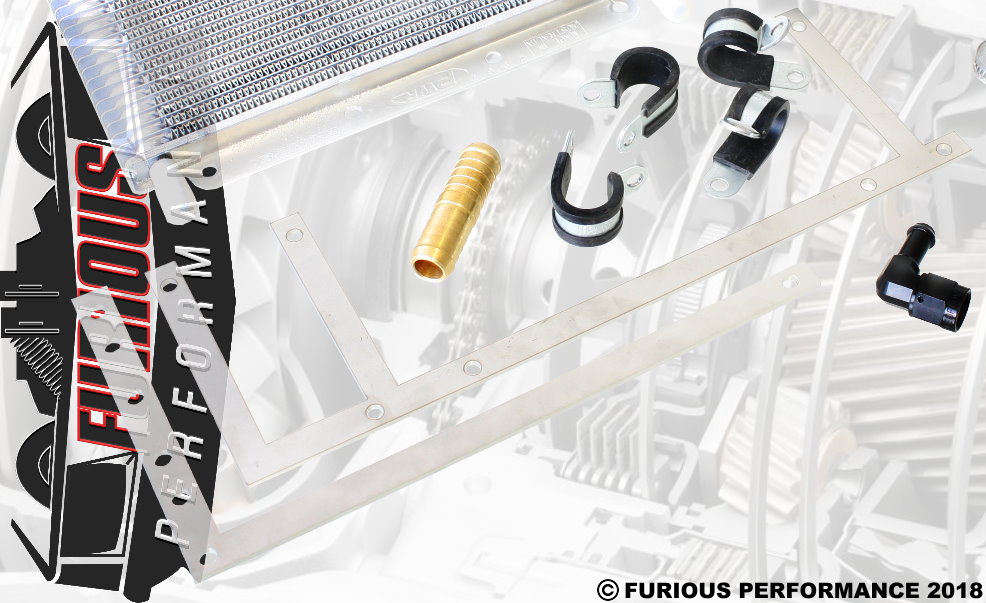

  • [QTY: 1] Part No: TCK-058BYP - Brass male to male coolant hose bypass adapter fitting.

  • [QTY: 1] Part No: TCK-F0FGBK - Ford FG Falcon & SZ Territory Bracket Kit.

  • [QTY: 1] Part No: TCK-F038FK - Universal Bolt, Nut & Clamp fitting kit.

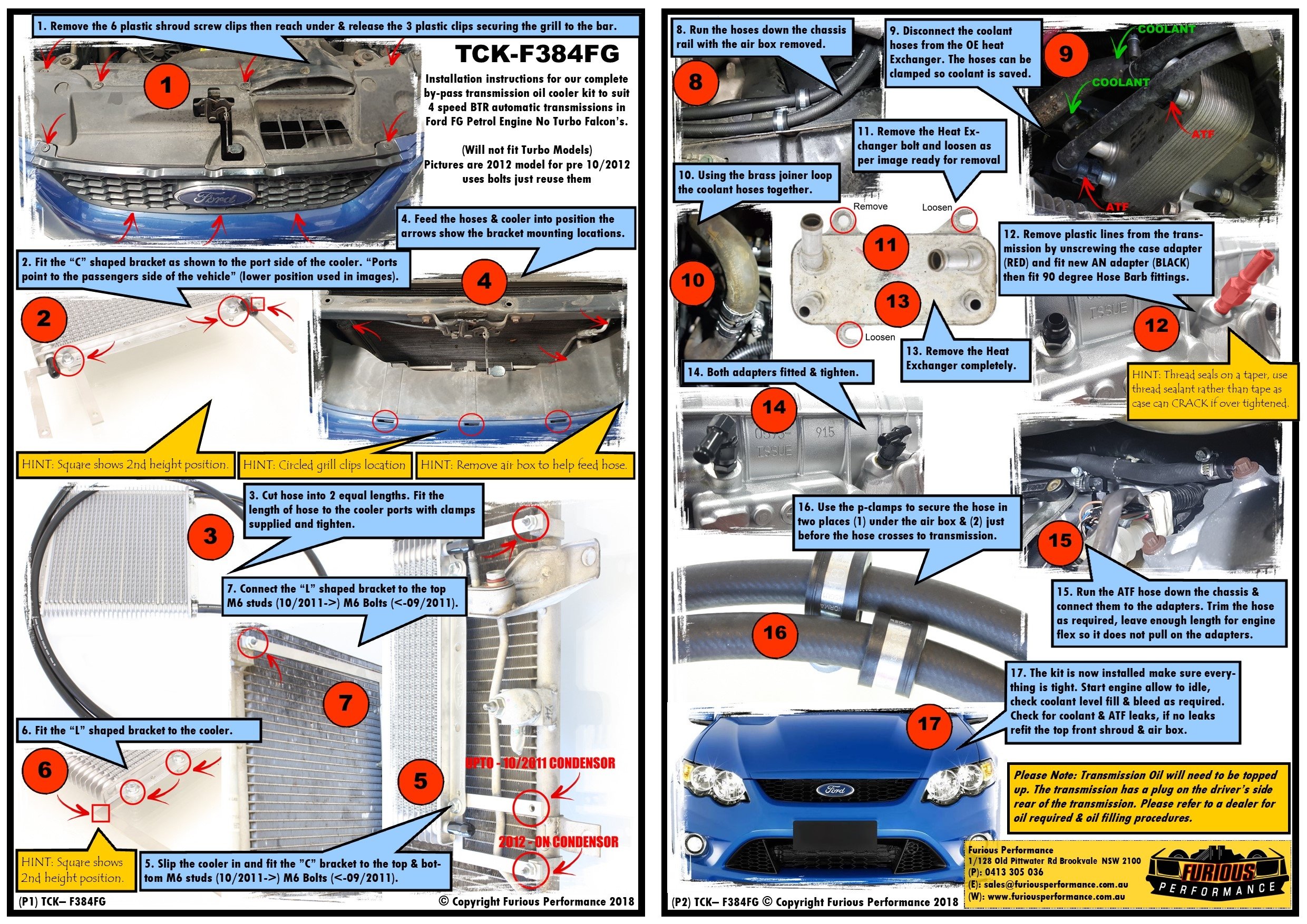

  • [QTY: 1] Double sided A4 instructions with detailed images.

OUR OPINION ON THIS ITEM

  • All Automatic Transmissions are fitted with an internal heat exchange in the radiator tank or an external heat exchanger mounted to the vehicle with coolant hoses attached. This is to help keep the transmission at operating temperature however the transmission can become over heated due to Hi-Performance, Towing or Loading. Fitting a cooler in series with the radiator can help keep the transmission cooler in extreme conditions but still allow the radiator to help keep operating temp. Bypassing the radiator and just using the cooler can also help when the transmission is under lots of load all the time. Bypassing can also take away the risk of the radiator core or exchanger cracking and filling your transmission with water which will result in a Rebuild of the transmission.

PLEASE READ BEFORE YOU BUY

  •  This kit connects directly to the BTR 4spd transmission housing using screw in aluminium adapters (Recommended Kit for BTR 4 speed Vehicles).
