Ford FG Falcon 5 speed Automatic Transmission Oil Cooler Coolant Bypass Kit TCK-F385FG


Ford FG Falcon 5 speed Automatic Transmission Oil Cooler Coolant Bypass Kit TCK-F385FG

380.00

Automatic Transmission Oil Cooler Kit to suit Ford FG Falcon 5 speed Automatic Transmissions

KIT INFORMATION

  • Automatic Transmission External Oil Cooler Kit to suit Ford FG 6cyl Non Turbo Engine Falcons.

  • Extra Large PWR Plate Fin Transmission Cooler (255 x 280 x 19) with 10mm Push On Hose Barb's (Cooler provided in kit will be Raw Aluminium colour).

  • This kit is a complete Bypass of the factory heat exchanger & the supplied fittings are designed to connect directly into the factory steel pipes with out cutting.

  • The cooler mounts in front of the A/C condenser and behind the front bumper bar. Only the front grill will need to be removed to fit the cooler and brackets.

  • Kits includes 1 x PWR Oil Cooler, 2 x 1.6m Length of 10mm ID hose, 2 x Aluminium Line adapter fittings, 1 x Coolant Bypass Adapter, 4 x Hose Clamps, Mounting Brackets, Bolts, Nuts & Instructions.

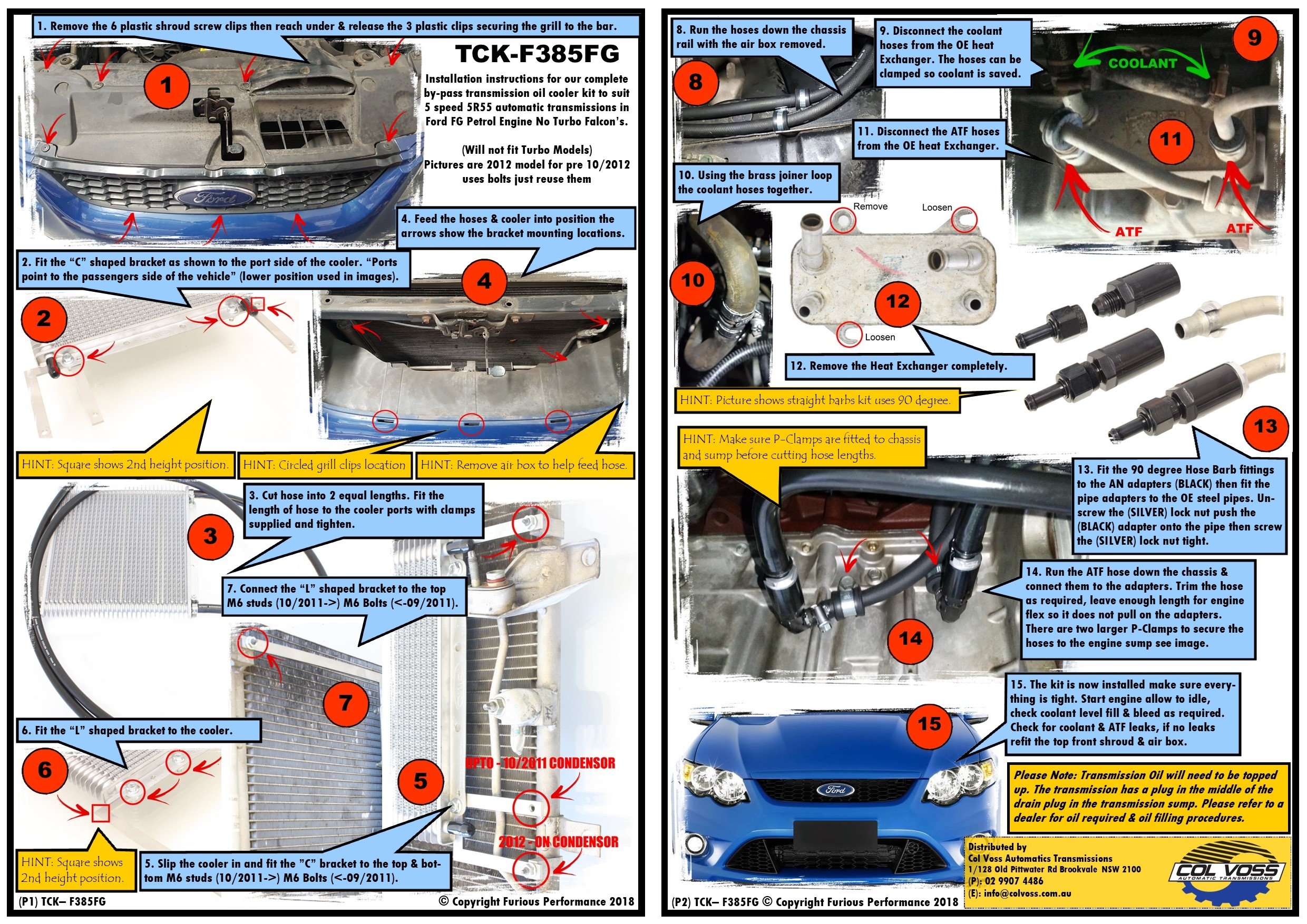

  • Fitting instructions written by Furious Performance with detailed images.

  • Please Note: The Brackets supplied are to suit all Ford FG Falcons.

  • Part No: TCK-F385FG.

KIT CONTENTS

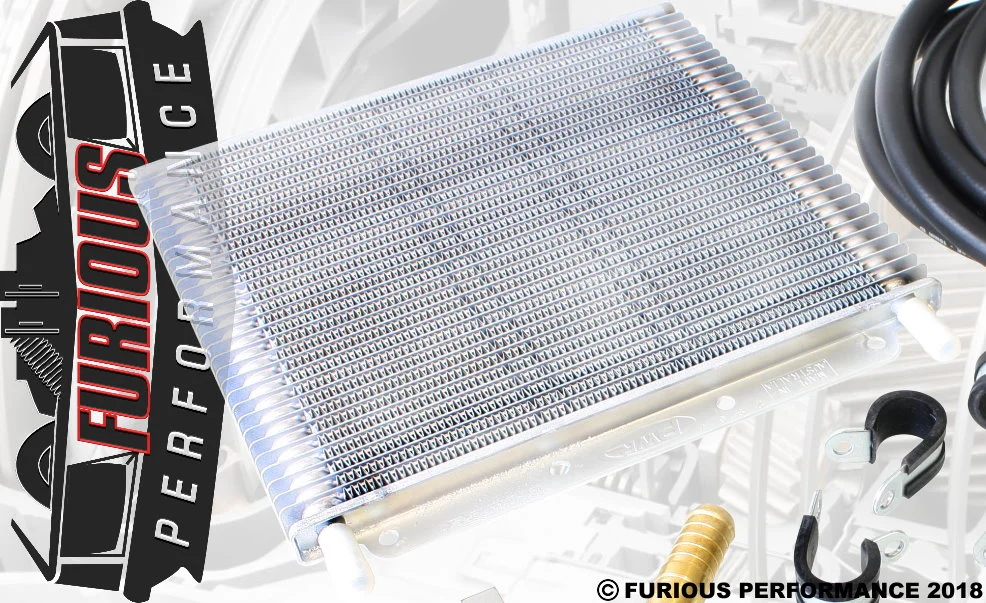

  • [QTY: 1] Part No: TC-25510 - PWR External Plate & Fin Transmission Cooler (280x255x19) 10mm Barbs (PWO0528).

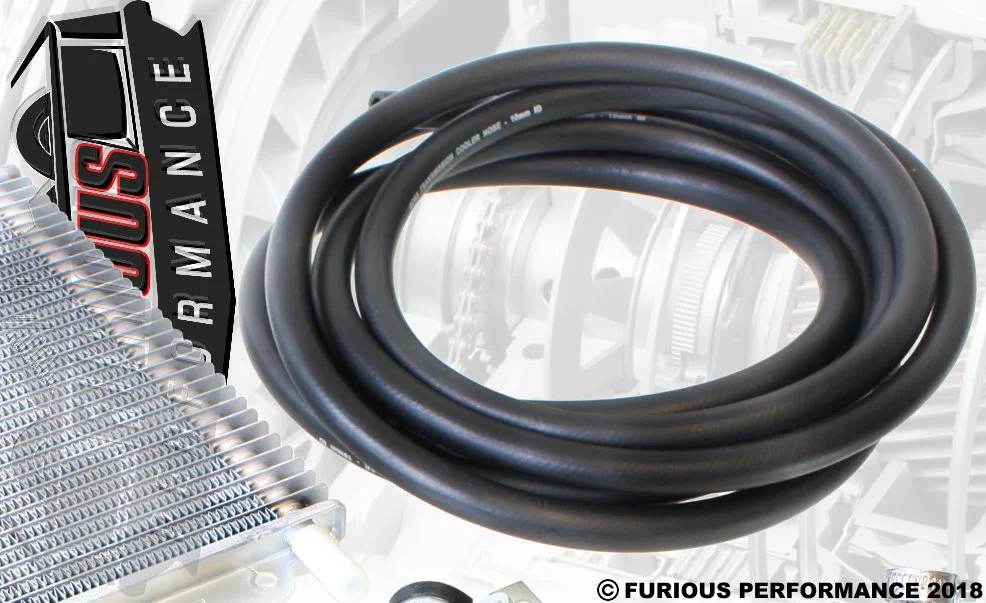

  • [QTY: 3.6] Part No: 444-06-ATF - Goss 10mm ID Automatic Transmission Fluid Hose (3.6 Metres).

  • [QTY: 2] Part No: 715-06-08-BLK -  Speedflow -6AN Male to 1/2" EFI tube adapter fitting.

  • [QTY: 2] Part No: 413-06-BLK - Speedflow -6AN female to 3/8" barb male hose adapter fitting.

  • [QTY: 1] Part No: TCK-058BYP - Brass male to male coolant hose bypass adapter fitting.

  • [QTY: 1] Part No: TCK-F0FGBK - Ford FG Falcon & SZ Territory Bracket kit.

  • [QTY: 1] Part No: TCK-F038FK - Universal Bolt, Nut & Clamp fitting kit.

  • [QTY: 1] Double sided A4 instructions with detailed images.

OUR OPINION ON THIS ITEM

  • All Automatic Transmissions are fitted with an internal heat exchange in the radiator tank or an external heat exchanger mounted to the vehicle with coolant hoses attached. This is to help keep the transmission at operating temperature however the transmission can become over heated due to Hi-Performance, Towing or Loading. Fitting a cooler in series with the radiator can help keep the transmission cooler in extreme conditions but still allow the radiator to help keep operating temp. Bypassing the radiator and just using the cooler can also help when the transmission is under lots of load all the time. Bypassing can also take away the risk of the radiator core or exchanger cracking and filling your transmission with water which will result in a Rebuild of the transmission.

PLEASE READ BEFORE YOU BUY

  • This automatic transmission oil cooler kit will only fit Fords Falcons using an External Heat Exchanger cooling unit under the inlet manifold. This kit will connect onto the factory steel lines lines at the heat exchanger junction. (Recommended Kit for 5R55S 5 speed Vehicles).
