Automatic Transmission External Oil Cooler Kit to suit Ford Territory (6 Speed ZF Automatic Only).

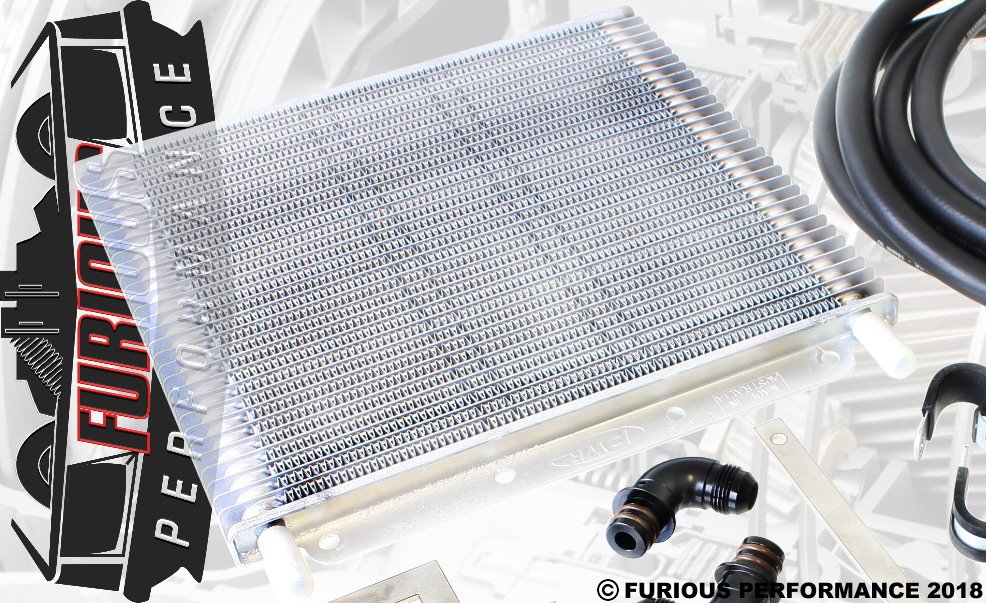

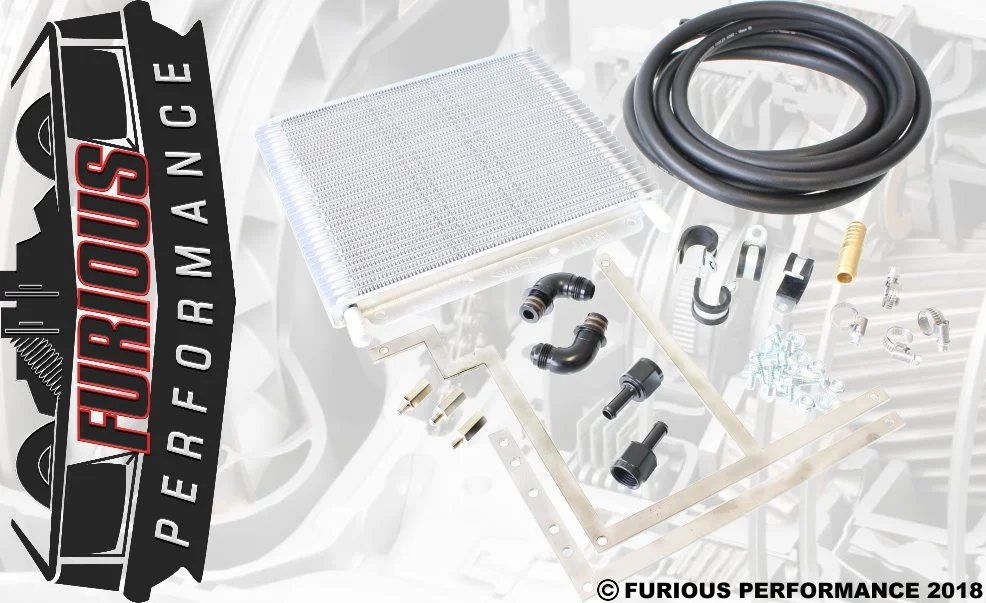

Extra Large PWR Plate Fin Transmission Cooler Silver Aluminium (255 x 280 x 19) with 10mm Push On Hose Barb'sKits includes Oil Cooler, 1 x 4m Length of 10mm ID hose, 2 x ZF 90 degree Billet Alloy Adapter Fittings, 2 x 3/8" Hose Barb Adapters, 4 x Hose Clamps, Mounting Brackets (Suit Ford Territory), Bolts and Nuts.This kit how has Coolant By-Pass Fitting so Heat Exchanger can be removed from car.Bypass fittings supplied are designed to fit directly into the ZF 6 speed housing using factory bracket.Brackets supplied are to suit the Ford Territory.Coolant Bypass is also recommended on Gas Systems to help water flow for better performance.This kit includes fitting instructions written by Furious Performance with detailed images.Furious Part Number: TCK-T386SY
KIT CONTENTS

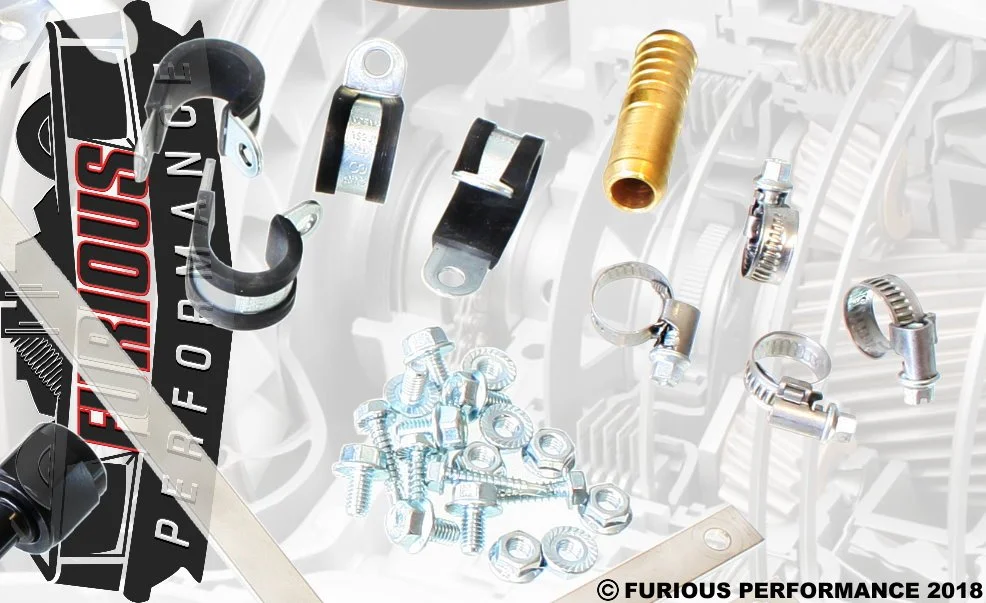

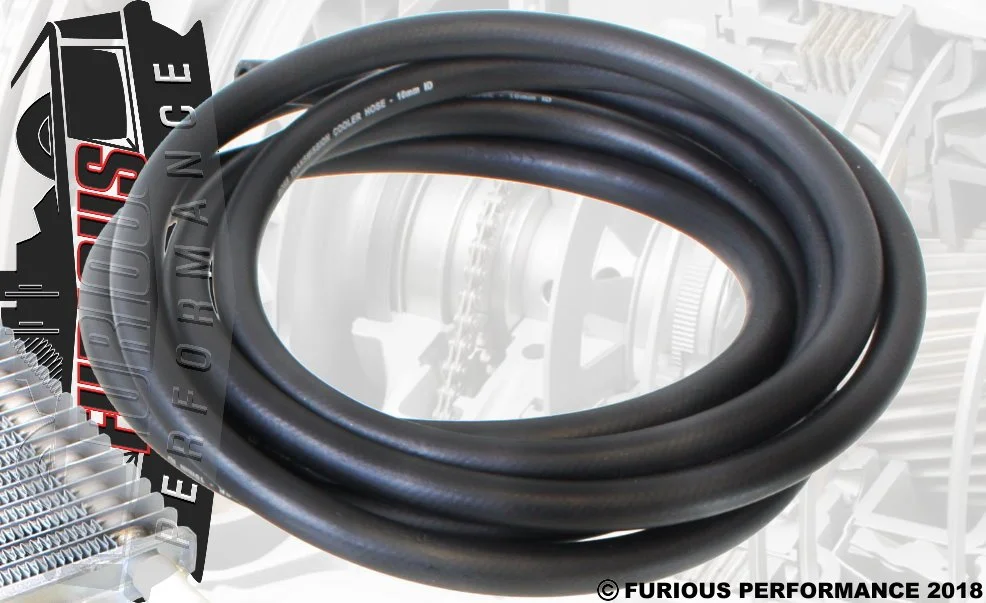

[QTY: 1] Part No: TC-25510 - PWR External Plate & Fin Transmision Cooler (280x255x19) 10mm Barbs (PWO0528).[QTY: 4] Part No: 444-06-ATF - Goss 10mm ID Automatic Transmisison Fluid Hose (4 Meters).[QTY: 2] Part No: 922-08-ZF-BLK - Speedflow 90deg Billet Aluminium ZF case adapter fittings.[QTY: 2] Part No: 411-08-06-BLK - Speedflow -8AN female to 3/8" barb male hose adapter fittings.[QTY: 1] Part No: TCK-058BYP - Brass male to male coolant hose bypass adapter fitting.[QTY: 1] Part No: TCK-F0BABK - Ford BA/BF Falcon & SX/SY Territory Bracket Kit.[QTY: 1] Part No: TCK-F038FK - Universal Bolt, Nut & Clamp fitting kit.[QTY: 1] Double sided A4 instructions with detailed images.PLEASE READ BEFORE YOU BUY
This automatic transmission oil cooler kit for the Ford SY Territory with 6 speed ZF Transmission using a Heat Exchanger under the inlet manifold to cool the transmission.This kit will bypass the Heat Exchanger by connecting into the transmission housing using the factory bracket.This kit now also has a fitting to bypass the coolant hoses so the Exchanger can be removed.OUR OPINION ON THIS ITEM
All Automatic Transmissions are fitted with a heat exchange to the radiator this is to help keep the transmission at operating temperature however the transmission can become over heated due to Hi-Performance, Towing or Loading. Fitting a cooler in series with the radiator can help keep the transmission cooler in extreme conditions but still allow the radiator to help keep operating temp. Bypassing the radiator and just using the cooler can also help when the transmission is under lots of load all the time. Bypassing can also take away the risk of the radiator core cracking and filling your transmission with water which will result in a Rebuild of the transmission.
