Jeep Grand Cherokee WK2 3.6L V6 (2011 Onwards) Automatic Transmission Oil Cooler TCK-J386WK
Jeep Grand Cherokee WK2 3.6L V6 (2011 Onwards) Automatic Transmission Oil Cooler TCK-J386WK
Automatic Transmission External Oil Cooler Kit to suit the 3.6L V6 Jeep Grand Cherokee WK2 2011 - ONWARDS TCK-J386WK
Extra Large PWR Plate Fin Transmission Cooler (255 x 280 x 19) with 10mm Push On Hose Barb's (Cooler is raw aluminium).

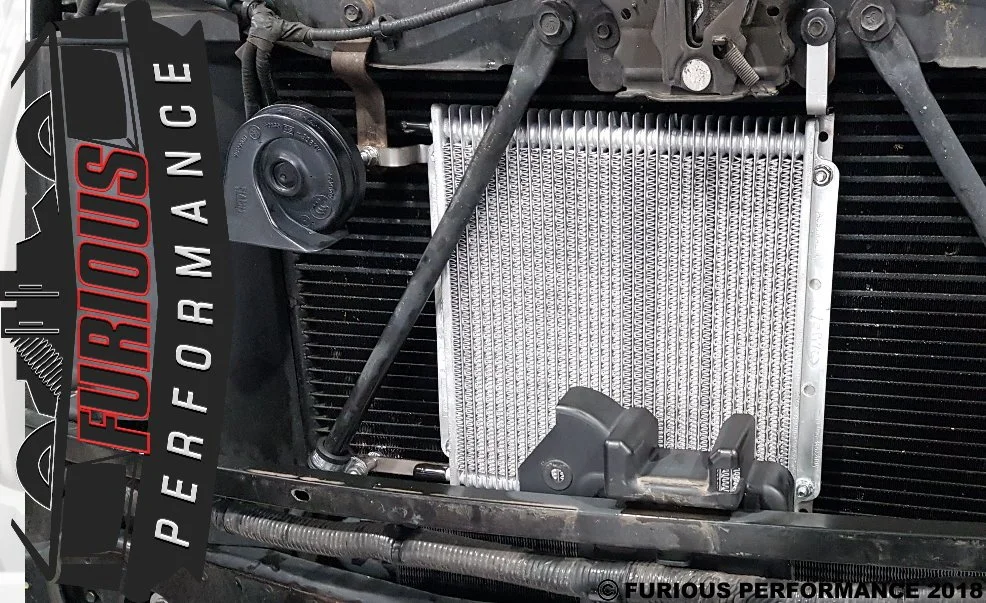

INSTALLATION: Very straight forward kit to fit only requires front bar to be removed.
Part No: TCK-J386WK

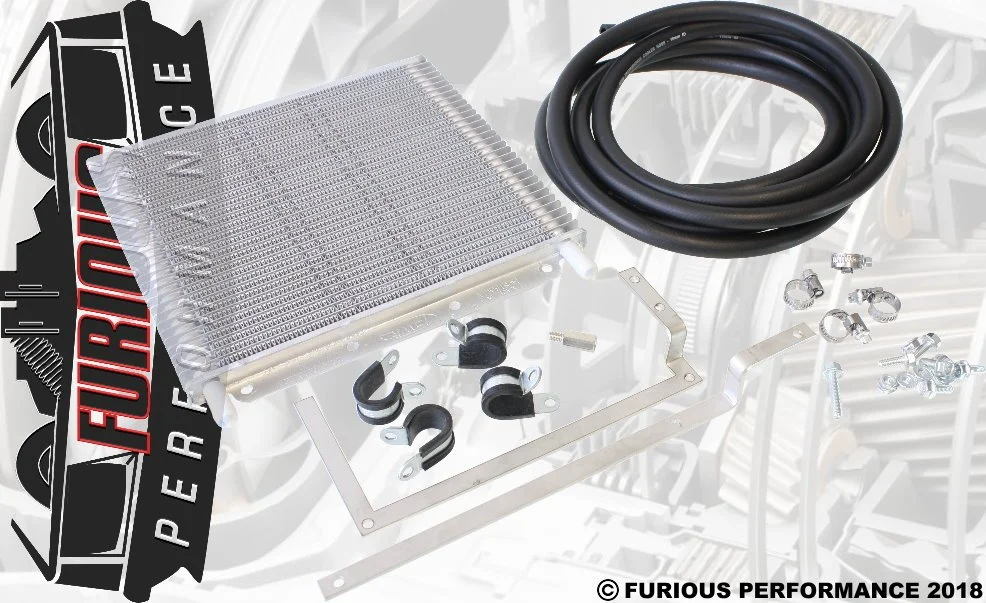

KIT CONTENTS

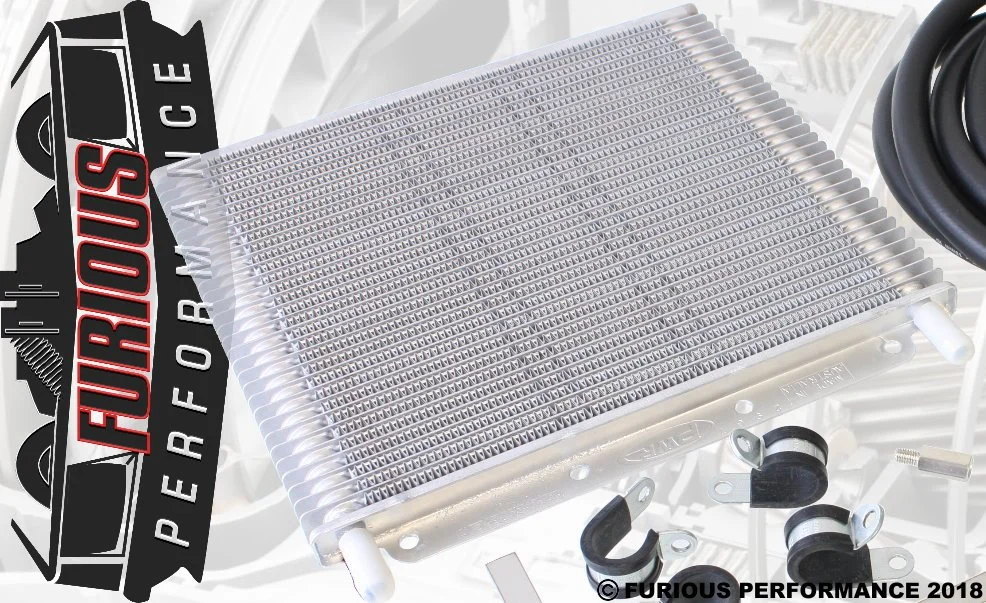

[QTY: 1] Part No: TC-25510 - PWR External Plate & Fin Transmision Cooler (280x255x19) 10mm Barbs (PWO0528).

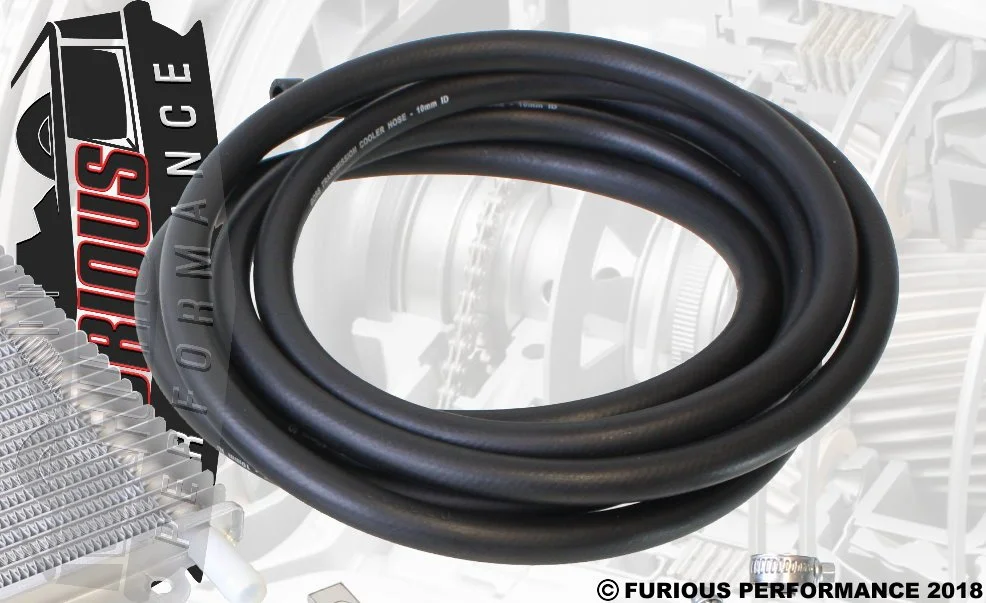

[QTY: 1] Part No: 444-06-ATF - Goss 10mm ID Automatic Transmisison Fluid Hose (1 Metre).
[QTY: 1] Part No: TCK-J386BK - Stainless Steel Mounting Brackets, Bolt, Nut & Clamp fitting kit.

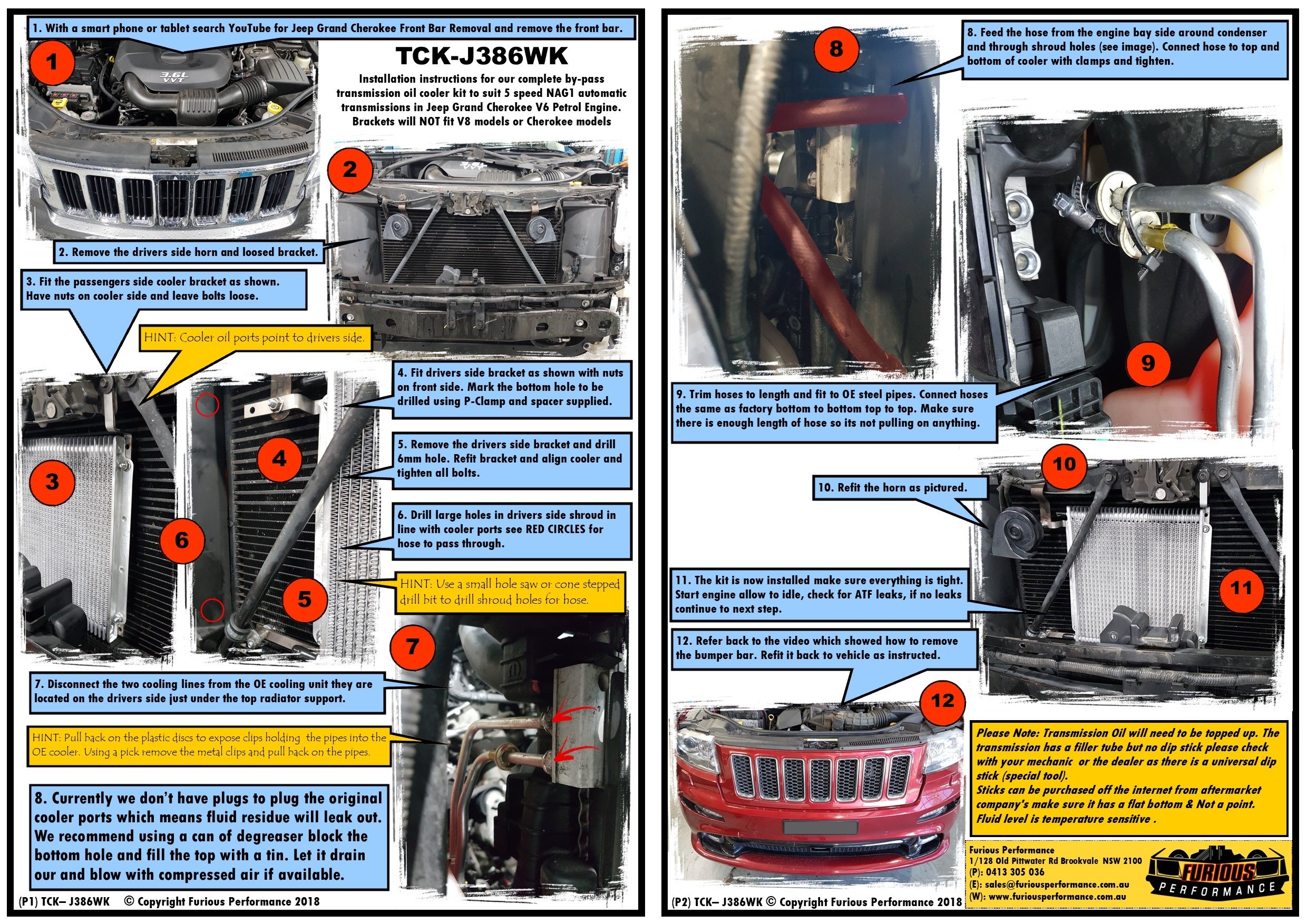

[QTY: 1] Included Double sided A4 instructions with detailed images on how to install the kit to your Jeep Grand Cherokee.
OUR OPINION ON THIS ITEM

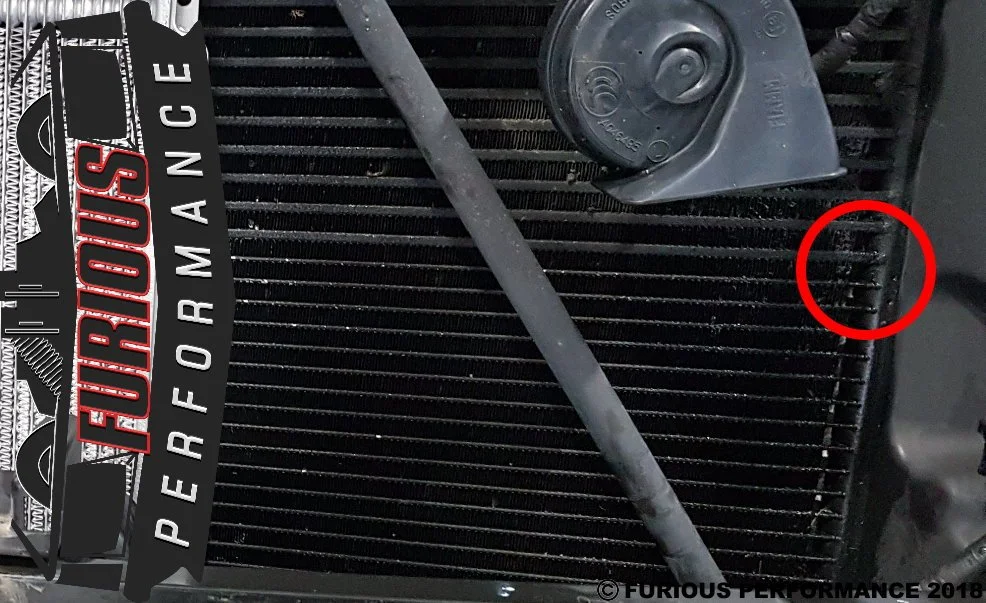

The factory automatic transmission cooler is prone to leak & it's incorporated within the air conditioning condenser which if and when the cooler fails requires the air conditioning system to be de-gassed to allow the removal of the condenser & transmission cooler assembly. This Transmission Cooler kit allows this assembly to be left untouched & bypassed.
